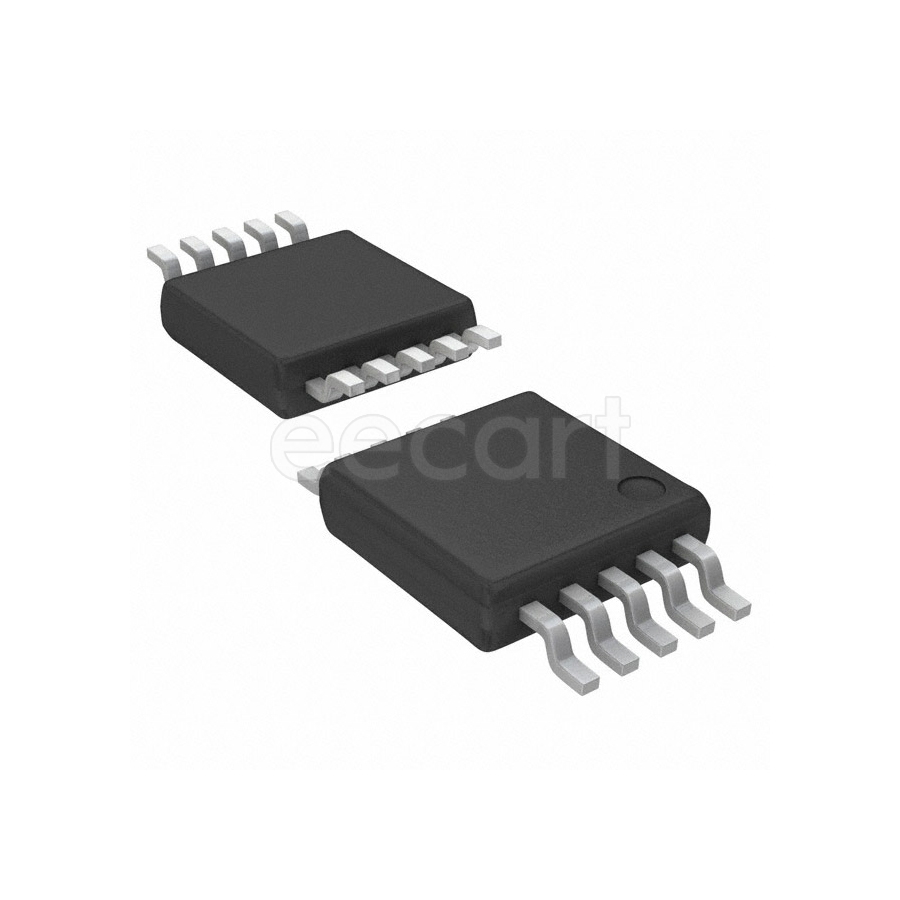

MAX11212AEUB+
Manufacturer:
Analog Devices / Maxim Integrated
Mfr.Part #:
MAX11212AEUB+
Datasheet:
Description:
Analog to Digital Converters (ADCs) UMAX-10 SMD/SMT number of channels:1 Number of Inputs:1 2.25 B 120 sps Core Architecture:Sigma-Delta
| Parameter | Value |
|---|---|
| Length | 3.05 mm |
| Width | 3.05 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 950 µm |
| Radiation Hardening | No |
| Interface | 2-Wire, SPI, Serial |
| Operating Supply Voltage | 3.6 V |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Max Power Dissipation | 444 mW |
| Number of Channels | 1 |
| Number of Bits | 18 |
| Supply Type | Analog, Digital |
| Sampling Rate | 120 sps |
| Number of Converters | 1 |
| Nominal Supply Current | 230 µA |
| Number of Analog Inputs | 1 |
| Resolution | 2.25 B |
| Number of A/D Converters | 1 |
| Conversion Rate | 120 sps |
| Packaging | Tube |
| Configuration | ADC |
| Input Type | Differential |
| Interface Type(Data Interface) | SPI |
| Analog Supply Voltage | 2.7 V to 3.6 V |
| Max Digital Supply Voltage | 3.6 V |
| Min Digital Supply Voltage | 1.7 V |
| Core Architecture(core/core processor) | Sigma-Delta |
| Reference Type | External |
| Number of Inputs | 1 |
| RoHS | Compliant |
Stock: 64
Distributors
pcbx
pcbxUnit Price$3.03500
Ext.Price$3.03500
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.03500 | $3.03500 |
| 10 | $2.31515 | $23.15150 |
| 25 | $2.15990 | $53.99750 |
| 50 | $2.01507 | $100.75350 |
| 100 | $1.91504 | $191.50400 |
| 300 | $1.84493 | $553.47900 |
| 500 | $1.77740 | $888.70000 |
| 1000 | $1.72696 | $1726.96000 |
